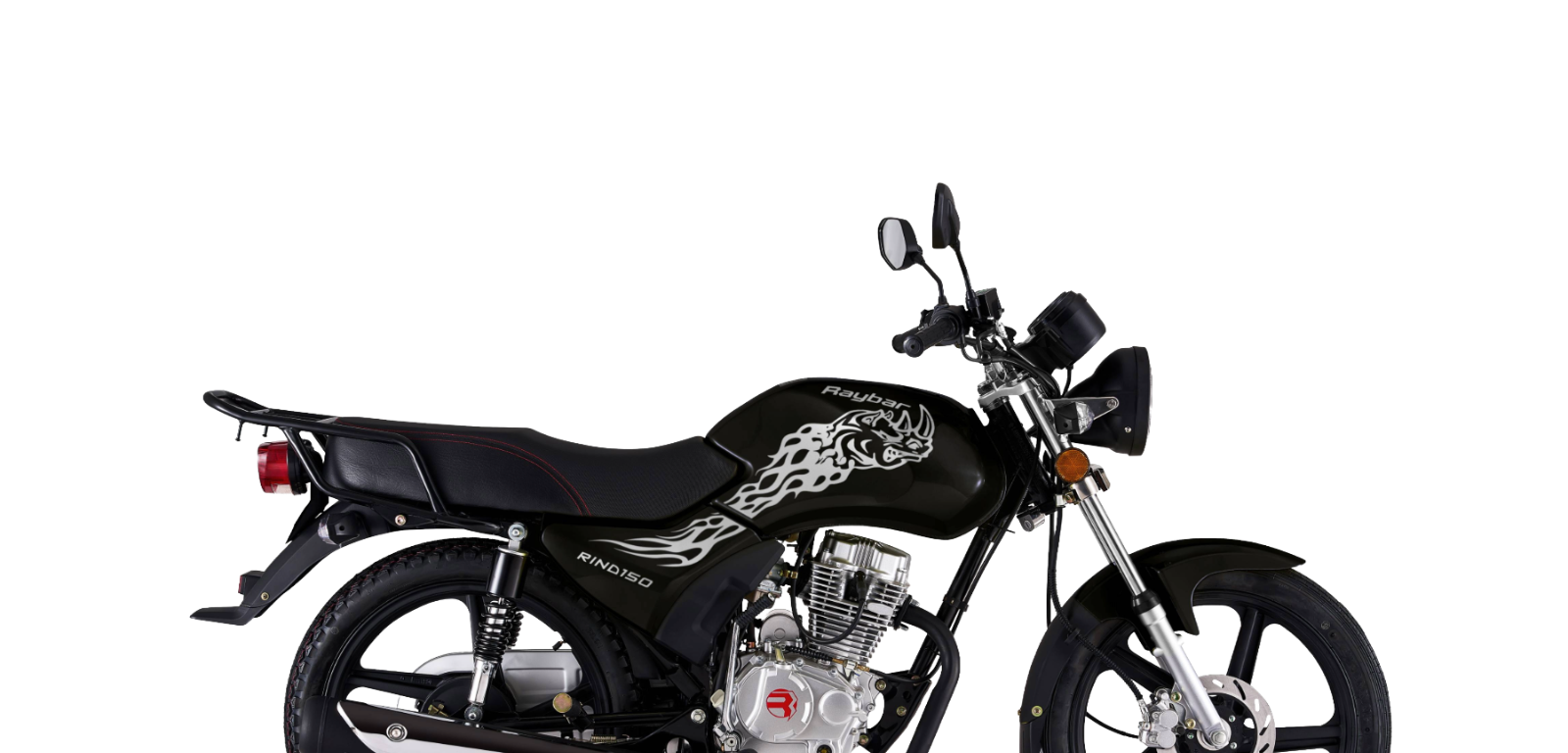

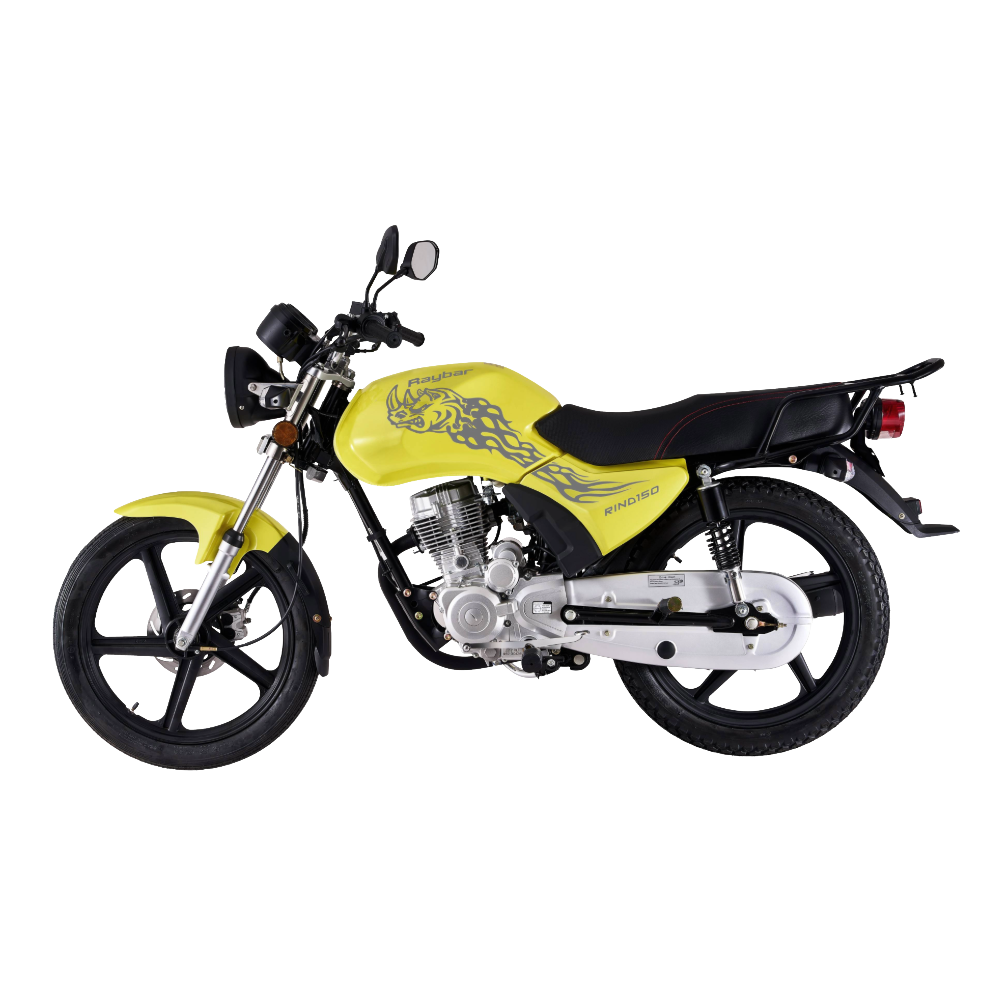

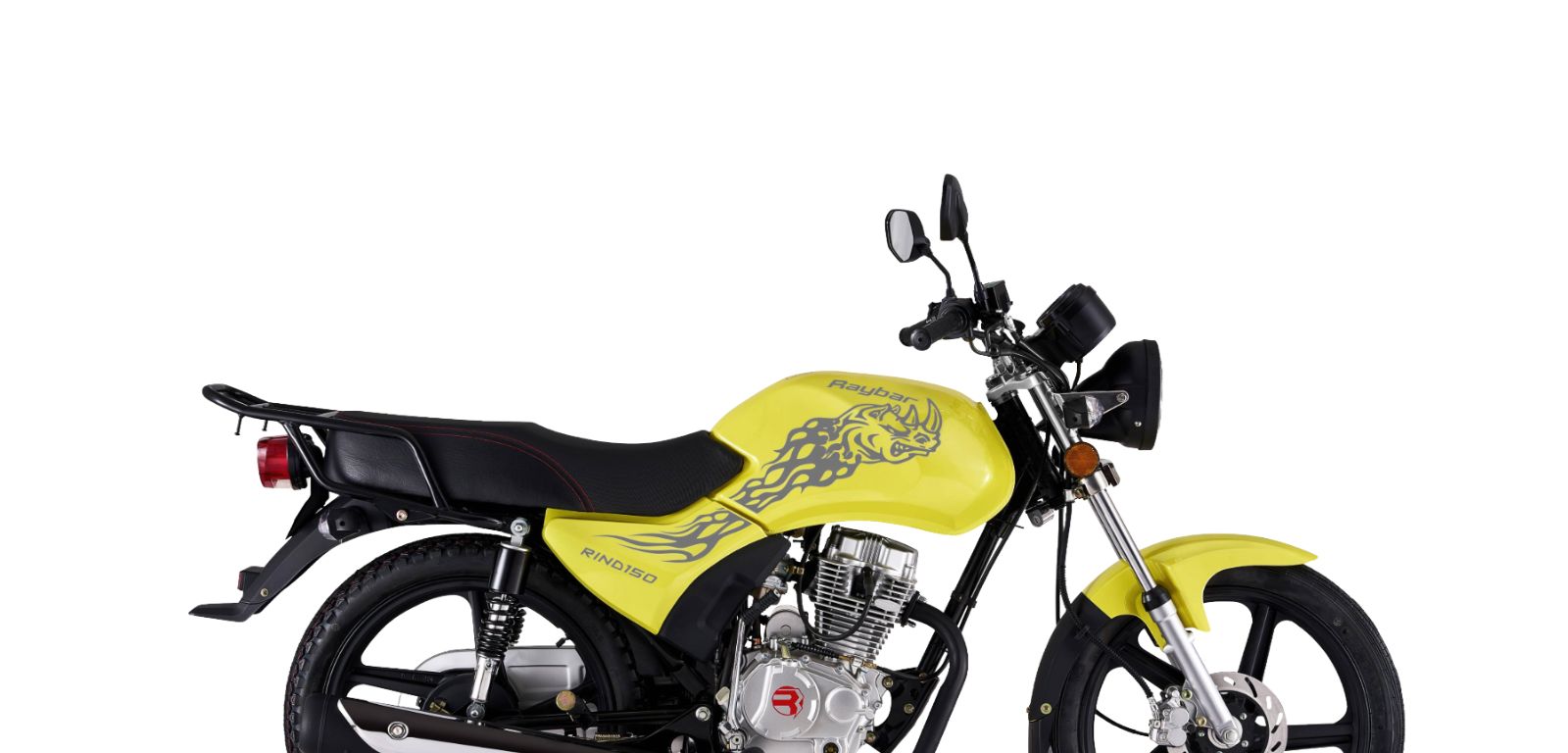

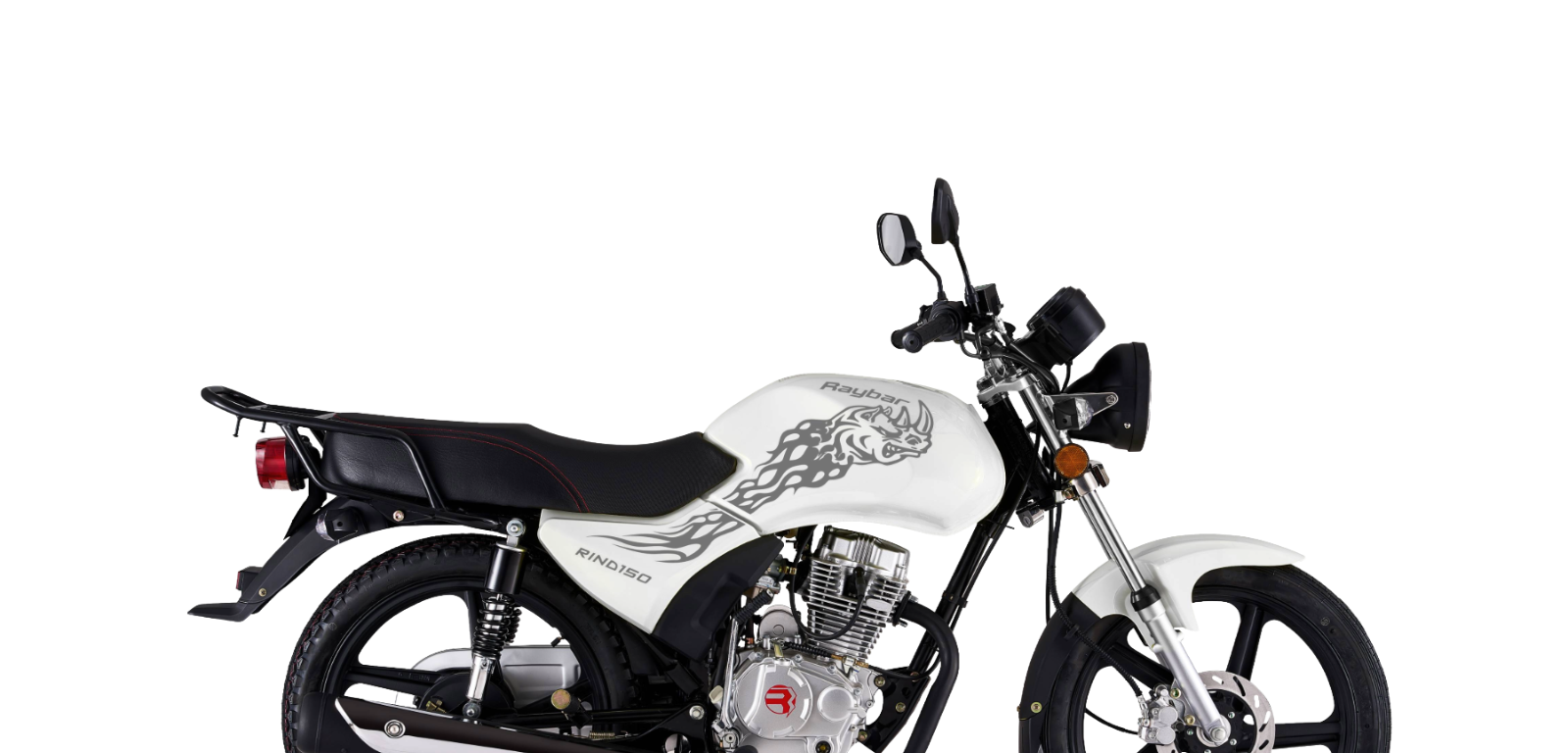

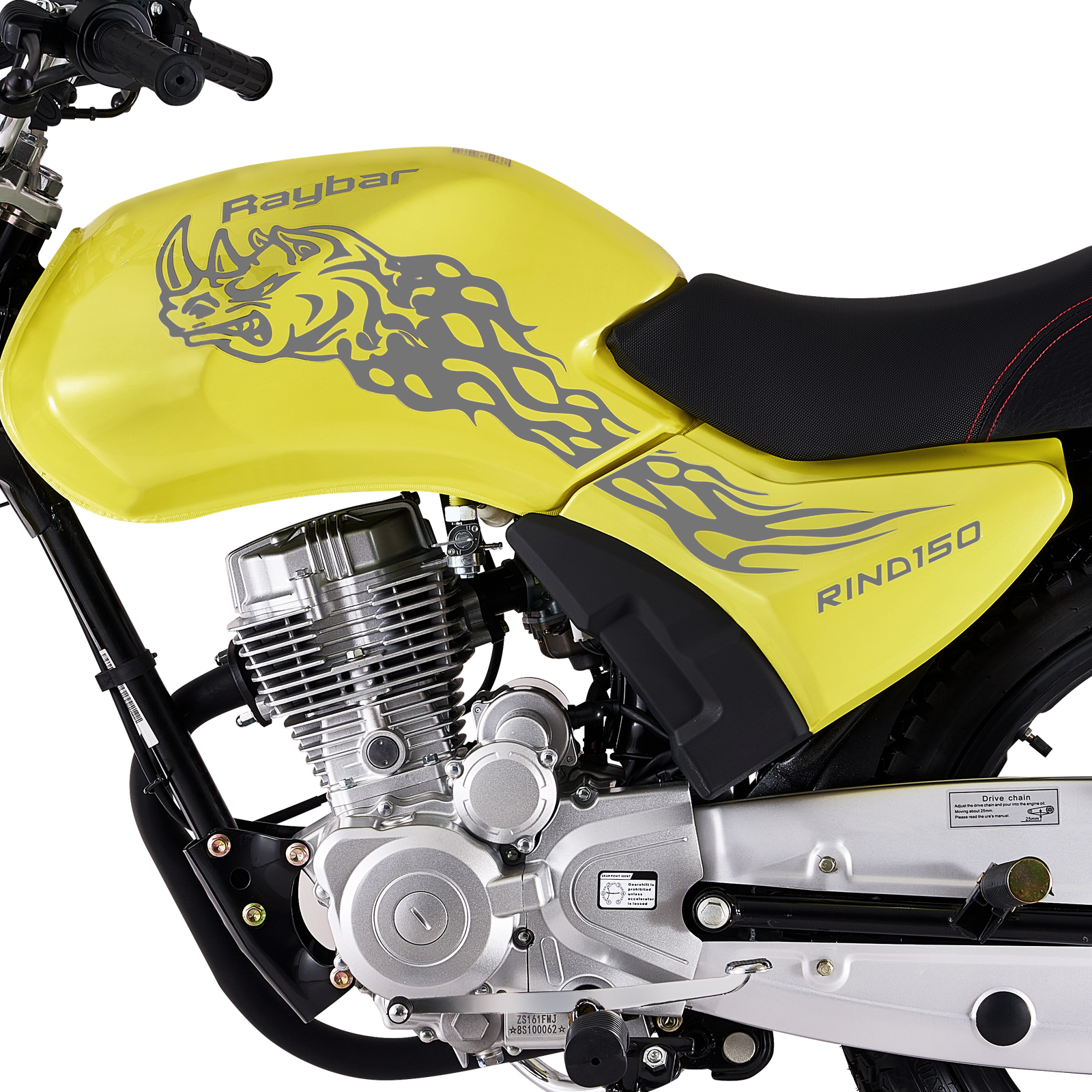

Rino 150

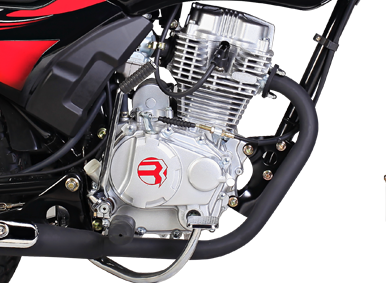

ENGINE

Cooling system	By air
Cylinders	1
Engine Type (CG – CB)	CG
Balanced or Unbalanced	Unbalanced
Displacement	150 CC
Maximum power	9.0kw/8500r/min
Maximum Torque	11.0N.m/7500r/min
Diameter and stroke	62.0×49.9
Compression ratio	9.4:1

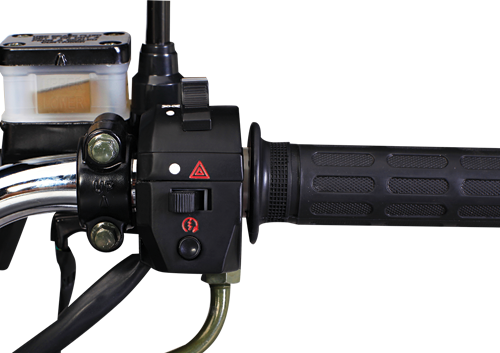

On	Electric /Kicked
Maximum speed	93 Kmph
Consumption (Liters/100 km)	2.1L/100km
Carburetor	PZ27

TRANSMISSION

Clutch	Wet multidisk
Gearbox	5 Speeds
Pinion	15
Crown	38
Chain	428H
Chain Length	102

SUSPENSION

Front	Telescopic
Rear	Spring

BRAKES

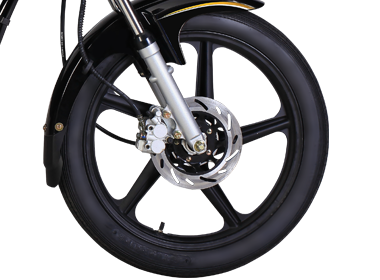

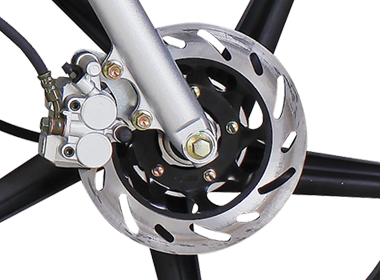

Front brakes	Disc
Rear brakes	Drum

WHEELS & TYRES

Front tire measurement	1.6×18
Rear tire measurement	1.85×18
Front cover measurement	80/100-18
Rear cover measurement	90/90-18
Cover type (With/Without camera)	With camera

ELECTRICAL/CONTROL

Battery	MF-12V6.5AH
Front lamp	12V/8W
Front Lamp Type (Normal/LED)	LED
Rear Lamp/Stop	12V/3.5W/3W
Rear Lamp Type (Normal/LED)	LED
Rotating lamp type (Normal/LED)	LED
Ignition system	A/C CDI

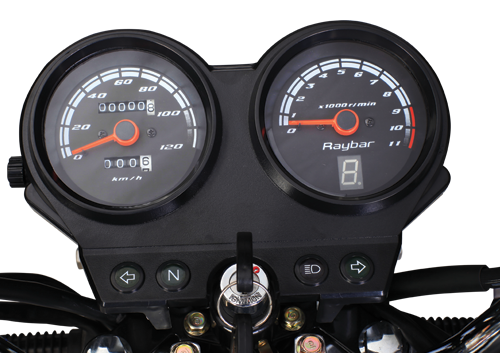

Boardboard	Digital

DIMENSION

Turning lamp	12V/1.3W
Length (mm)	1890
Width (mm)	750
Height (mm)	1080
Wheelbase (mm)	1240
Clearance to the ground (mm)	170
Fuel tank capacity (mm)	12
Empty weight (Kg)	115

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1.00
Engine Type	CB
Balanced or Unbalanced	With Balanced
Displacement/Capacity	127.1 ml
Maximum power	7.5kw/8000r/min
Maximum Torque	10.5N.m/5500r/min
Bore and stroke	54×55.5
Compression ratio	9.1:1
Starting	Electric /Kick Start
Top speed	90 Km/h
Mileage(Liters/100 km)	1.8L/100km
Carburetor	PZ20B

TRANSMISSION

Clutch	Wet Multi Plate
Gearbox	4 Speed
Front Sprocket	14.00
Rear Sprocket	37.00
Chain Size	428H
No 0f Chain Links	104.00

SUSPENSION

Front	Telescopic
Rear	Spring coil type

BRAKES

Front brake	Disc
Rear brake	Disc

WHEELS & TYRES

Wheel Size Front	1.4×18
Wheel Size Rear	2.15×16
Tyre Size Front	2.75-18
Tyre Size Rear	3.50-16
Tyre type(Tubeless or with tube)	With tube

ELECTRICAL/CONTROL

Battery	BS_12V4AH
Head lamp	12V/13W/28W
Head Lamp Type (Normal/LED)	LED
Tail Stop/Lamp	12V/0.1W/0.9W
Tail Lamp Type (Normal/LED)	LED
Turn Signal lamp	12V/1.5W/0.8W
Turn Signal lamp type (Normal/LED)	LED
Ignition system	CDI
Speedometer	LED Digital

DIMENSION

Length (mm)	1930.00
Width (mm)	700.00
Height (mm)	1150.00
Wheelbase (mm)	1285.00
Clearance to the ground (mm)	180.00
Fuel tank capacity (Litres)	8.50
Motorcycle weight (Kg)	120.00

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Engine Type	CB
Balanced or Unbalanced	Unbalanced
Displacement/Capacity	150.3 CC
Maximum power	9kw/8500r/min
Maximum Torque	11N.m/7500r/min
Bore x stroke	62×49.8
Compression ratio	9.09:1
Starting	Electric /Kick start
Top speed	95 Kmph
Mileage(Liters/100 km)	2.2L/100km
Carburetor	PZ26
Engine Oil Grade	SF10W-40

TRANSMISSION & CHASSIS

Clutch	Wet multi plate
Gearbox	5 Speed
Front Sprocket	15
Rear Sprocket	39
Chain Size	428H
Chain 9f Chain Links	108

SUSPENSION

Front	Telescopic
Rear	Spring Coil Type

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS & TYRES

Wheel Size Front	1.6*18
Wheel Size Rear	2.15*18
Tyre Size Front	2.75-18
Tyre Size Rear	3.25-18
Cover type (With/Without tube)	With tube

ELECTRICAL/CONTROL

Battery	MF-12VN6.5AH
Head lamp	12V/7w/7w
Head Lamp Type (Normal/LED)	Hs1 bulb
Tail /Stop Lamp	12V/2w
Tail Lamp Type (Normal/LED)	LED
Turn Signal lamp	12V/0.5W
Turn Signal lamp type (Normal/LED)	LED
Ignition system	A/C CDI
Speedometer	Digital

DIMENSION

Length (mm)	1985
Width (mm)	750
Height (mm)	1100
Wheelbase (mm)	1290
Clearance to the ground (mm)	170
Fuel tank capacity (mm)	16
Kerb weight (Kg)	117

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Engine Type	CG
Balanced or Unbalanced	Unbalanced
Displacement/Capacity	149.4 CC
Maximum Power	8.5/8000 km/r/min
Maximum Torque	10/7500 N.m/r/min
Bore x stroke	62.0×49.9
Compression ratio	9.2:1
Starting	Electric /Kick
Top speed	95 kmph
Mileage(Liters/100 km)	2.1L/100km
Carburetor	PZ27

TRANSMISSION & CHASSIS

Clutch	Wet multi plate
Gearbox	5 Speed
Front Sprocket	15
Rear Sprocket	42
Chain Size	428H
Number 0f Chain Links	108

SUSPENSION

Front	Telescopic
Rear	Spring Coil Type

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS & TYRES

Wheel Size Front	1.6×18
Wheel Size Rear	2.15×18
Tyre Size Front	3.00-18
Tyre Size Rear	3.25-18
Tire Type (With/Without Tube)	With Tube

ELECTRICAL/CONTROL

Battery	12V7AH
Headlamp	12V/35W
Headlamp Type (Normal/LED)	Normal
Tail/Stop Lamp	12V/21W
Tail Lamp Stop(Normal/LED)	Normal
Turn Signal lamp	12V/1.3W
Turn signal lamp type (Normal/LED)	LED
Ignition system	CDI
Speedometer	Mechanical

DIMENSION

Length (mm)	2020
Width (mm)	780
Height (mm)	1120
Wheelbase (mm)	1300
Ground clearance (mm)	160
Fuel tank capacity (Litres)	14
Motorcycle weight (kg)	135
Loadability in 1x40HQ (Pcs/Container)	105

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Engine Type	CG
Balanced or Unbalanced	Balanced
Displacement/Capacity	250 CC
Maximum power	11kw/8000r/min
Maximum Torque	16.5N.m/7000r/min
Bore and stroke	65.5×66.6
Compression ratio	8.8:1
Starting	Electric /Kick Start
Top speed	105 Kmph
Mileage(Liters/100 km)	2.3L/100km
Carburetor	PZ30

TRANSMISSION & CHASSIS

Clutch	Wet Multi Plate
Gearbox	5 Speed
Front Sprocket	16
Rear Sprocket	46
Chain Size	428H
No 0f Chain Links	134

SUSPENSION

Front	Telescopic
Rear	Monoshocker

BRAKES

Front brake	Disc
Rear brake	Disc

WHEELS & TYRES

Wheel Size Front	2.15×17
Wheel Size Rear	3.5×17
Tyre Size Front	100/80 – 17
Tyre Size Rear	130/70 – 17
Tyre type	Tubeless

ELECTRICAL/CONTROL

Battery	MF-12V9AH
Head lamp	12V/14W
Head Lamp Type (Normal/LED)	LED
Tail Stop/Lamp	12V/3W
Tail Lamp Type (Normal/LED)	LED
Turn Signal lamp	12V/1.2W
Turn Signal lamp type (Normal/LED)	LED
Ignition system	A/C CDI
Speedometer	Digital

DIMENSION

Length (mm)	2020
Width (mm)	850
Height (mm)	1060
Wheelbase (mm)	1385
Clearance to the ground (mm)	165
Fuel tank capacity (Litres)	12
Motorcycle weight (Kg)	145

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Engine Type	Horizontal
Balanced or Unbalanced	Unbalanced
Displacement/Capacity	125 CC
Maximum power	5.6kw/8000r/min
Maximum Torque	8.5N.m/6000r/min
Diameter and stroke	52.4×55.5
Compression ratio	9.3:1
Starting	Electric /Kick Start
Top speed	90 kmph
Mileage (Liters/100 km)	2.1L/100km
Carburetor	PZ20

TRANSMISSION & CHASSIS

Clutch	Centrifugal clutch
Gearbox	4 Speed
Front Sprocket	14
Rear Sprocket	36
Chain Size	428
Number 0f Chain Links	108

SUSPENSION

Front	Telescopic
Rear	Spring Coil Type

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS & TYRES

Wheel Size Front	1.4×17
Wheel Size Rear	1.6×17
Tyre Size Front	2.50-17
Tyre Size Rear	2.50-17
Cover type (With/Without camera)	With Tube

ELECTRICAL/CONTROL

Battery	MF-12V5AH
Head Lamp	(12V/10W) X 2
Head Lamp Type (Normal/LED)	LED
Tail /Stop Lamp	12V/21W/5W
Tail Lamp Type (Normal/LED)	Normal
Turn Signal lamp	12V/10W
Turn Signal lamp type (Normal/LED)	LED
Ignition system	A/C CDI
Speedometer	Mechanical

DIMENSION

Length (mm)	1970
Width (mm)	700
Height (mm)	1120
Wheelbase (mm)	1265
Clearance to the ground (mm)	120
Fuel tank capacity (Litres)	4.6
Motorcycle weight (Kg)	96

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Engine Type	CG
Balanced or Unbalanced	UnBalanced
Displacement/Capacity	150 CC
Maximum power	8.5kw/8000r/min
Maximum Torque	10 N.m/7500r/min
Bore x stroke	62×49.5
Compression ratio	9.2:1
Starting	Electric /Kick start
Top speed	105 Kmph
Mileage (Liters/100 km)	2.7L/100km
Carburetor	PZ27

TRANSMISSION & CHASSIS

Clutch	Wet multi-plate
Gearbox	5 Speed
Front Sprocket	15
Front Sprocket	38
Chain Size	428H
Number 0f Chain Links	102

SUSPENSION

Front	Telescopic
Rear	Spring Coil Type

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS AND TIRES

Wheel Size Front	1.6×18
Wheel Size Rear	1.6×18
Tyre Size Front	2.75-18
Tyre Size Rear	3:00-18
Tire Type (With/Without Tube)	With tube

ELECTRICAL/CONTROL SYSTEM

Battery	DC-12V6.5AH
Headlamp	12V/35W
Headlamp Type (Normal/LED)	Normal
Tail/Stop Lamp	12V/10W
Tail Lamp Type (Normal/LED)	Normal
Turn Signal lamp	12V/5W
Turn Signal lamp type (Normal/LED)	Normal
Ignition system	A/C CDI
Speedometer	Mechanical

DIMENSIONS

Length (mm)	2020
Width (mm)	720
Height (mm)	1110
Wheelbase (mm)	1310
Clearance to the ground (mm)	130
Fuel tank capacity (Litres)	12
kerb weight (Kg)	105

ENGINE

Cooling	Air Cooled
Number of Cylinders	1
Type (CG or CB)	CG
Balanced or Non balanced	Balanced
Displacement/Capacity	149CC
Max. Power	8.5/8500r/min
Max. Torque	10.0/7000r/min
Bore x Stroke	62*49.5
Compression Ratio	9.0:1
Starting	Electric/ Kick start
Top speed	85 Kmph
Mileage (Litres/100 kms)	1.9L/100km
Carburetor	PZ27
Engine oil grade	SF10W-40

TRANSMISSION & CHASSIS

Clutch	Wet multi plate
Gear box	5 Speed
Front Sprocket	16
Rear Sprocket	50
Chain size	134
Number of Chain links	428H

SUSPENSION

Front	Telescopic
Rear	Mono shocker

BRAKES

Front Brake	Disc
Rear Brake	Drum

WHEELS & TYRES

Wheel Size Front	1.85×19
Wheel Size Rear	2.15×17
Tyre Size Front	90/90-19
Tyre Size Rear	110/90-17
Tyre Type (Tubeless or with Tube)	With tube

ELECTRICAL/CONTROL

Battery	MF-12V6.5AH
Head Lamp	12V/14W
Head Lamp Type (Normal/LED)	LED
Tail/Stop Lamp	12V/21W/5W
Tail Lamp Type (Normal/LED)	Normal
Turn Signal Lamp	12V/10W
Turn Signal Lamp Type (Normal/LED)	Normal
Ignition system	A/C CDI
Speedometer	Mechanical

DIMENSION

Length (mm)	2070
Width (mm)	815
Height (mm)	1160
Wheelbase (mm)	1360
Ground Clearance (mm)	257
Fuel Tank Capacity (Litres)	10
Kerb Weight (kg)	150

ENGINE

Cooling	Air cooled
Number of Cylinders	1
Type (CG or CB)	CB
Balanced or Non balanced	Non balanced
Displacement/Capacity	150 CC
Max. Power	6.0kw/7500r/min
Max. Torque	8.3N.m/6000r/min
Bore x Stroke	57.4×57.8
Compression Ratio	10：1
Starting	Electric/ Kick start
Top speed	95 Kmph
Mileage (Litres/100 kms)	1.1L/100km
Carburetor	PD24J/18
Engine oil grade	SG15W-40

TRANSMISSION & CHASSIS

Clutch/Gear box

Automatic Transmission

SUSPENSION

Front	Telescopic
Rear	Spring coil Type

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS & TYRES

Wheel size Front	2.15-10
Wheel size Rear	2.15-10
Tyre Size Front	3.50-10
Tyre Size Rear	3.50-10
Tyre Type (With/Without Tube)	Tubeless

ELECTRICAL/CONTROL SYSEM

Battery	MF-12V/7AH
Head Lamp	12V/35W
Head Lamp Type (Normal/LED)	NORMAL
Tail/Stop Lamp	12V/3W
Tail Lamp Type (Normal/LED)	LED
Turn Signal Lamp	Front:12V/1.8W, Rear:12V/2W
Turn Signal Lamp Type (Normal/LED)	LED
Ignition System	A/C CDI
Speedometer	LCD

DIMENSION

Length (mm)	1710
Width (mm)	630
Height (mm)	1025
Wheelbase (mm)	1045
Ground clearance (mm)	110
Fuel tank capacity (Litres)	5.50
Kerb weight (kg)	85

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Type	CG
Balanced or Unbalanced	Balanced
Displacement/Capacity	250 CC
Maximum Power	10.5kw/7500r/min
Maximum Torque	16.5N.m/5500r/min
Bore x stroke	65.5x.66.2
Compression ratio	8.8:1
Starting	Electric / Kick Start
Top speed	95 kmph
Mileage	2.9L/100km
Carburetor	PZ30

TRANSMISSION & CHASSIS

Clutch	Wet multi plate
Gearbox	5 Speed
Front Sprocket	13
Rear Sprocket	42
Chain Size	520
Number of Chain Links	106

SUSPENSION

Front	Telescopic
Rear	Mono Shocker

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS & TYRES

Wheel Size Front	1.85×19
Wheel Size Rear	2.50×17
Tyre Size Front	100/90-19
Tyre Size Rear	4.6-17
Tire Type (With/Without Tube)	With Tube

ELECTRICAL/CONTROL

Battery	MF-12V9AH
Head Lamp	12V/14W
Head Lamp Type	LED
Tail/Stop Lamp	12V/1.4W/0.3W
Tail Lamp (Normal/LED)	LED
Turn Signal Lamp	12V/1.2W
Turn signal lamp type (Normal/LED)	LED
Ignition system	A/C CDI
Speedometer	Digital

DIMENSION

Length (mm)	2070
Width (mm)	815
Height (mm)	1160
Wheelbase (mm)	1360
Ground clearance (mm)	257
Fuel tank capacity (Litres)	10
Kerb weight (kg)	150

ENGINE

Cooling	Air Cooled
N0. 0f Cylinders	1
Engine Type	CG
Balanced or Unbalanced	Balanced
Displacement/Capacity	200 CC
Maximum Power	10.0kw/8000r/min
Maximum Torque	14Nm/6000r/min
Bore x stroke	63.5×62.2
Compression ratio	9.1:1
Starting	Electric / Kick Start
Top speed	90 kmph
Mileage	2.9L/100km
Carburetor	PZ30

TRANSMISSION & Chassis

Clutch	Wet multi plate
Gearbox	5 Speed
Front Sprocket	13
Rear Sprocket	42
Chain Size	520
Number 0f Chain Links	106

SUSPENSION

Front	Telescopic
Rear	Mono Shocker

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS & TYRES

Wheel Size Front	1.85×19
Wheel Size Rear	2.50×17
Tyre Size Front	100/90-19
Tyre Size Rear	4.6-17
Tire Type (With/Without Tube)	With Tube

ELECTRICAL/CONTROL

Battery	MF-12V9AH
Head Lamp	12V/14W
Head Lamp Type	LED
Tail/Stop Lamp	12V/1.4W/0.3W
Tail Lamp Type	LED
Turn Signal lamp	12V.1.2W
Turn signal lamp type	LED
Ignition system	A/C CDI
Speedometer	Digital

DIMENSION

Length (mm)	2070
Width (mm)	815
Height (mm)	1160
Wheelbase (mm)	1360
Ground clearance (mm)	257
Fuel tank capacity (Litres)	10
Kerb weight (kg)	150

ENGINE

Cooling	Air Cooled
Number 0f Cylinders	1
Type	CG
Balanced or Unbalanced	Balanced
Displacement/Capacity	199.5CC
Maximum Power	11.8kw/8000rpm
Maximum Torque	15.5N.m/6000rpm
Bore x stroke	63.5×63
Compression ratio	9.5:1
Starting	Electric
Top speed	100
Mileage (Liters/100 kms)	2L/100kms
Carburetor	PZ30
Engine Oil Grade	SF10W-40

TRANSMISSION & CHASSIS

Clutch	Wet multi plate
Gearbox	5 Speed
Front Sprocket	15
Rear Sprocket	42
Chain Size	428HS
Chain of Chain Links	124

SUSPENSION

Front	Telescopic
Rear	Mono Shocker

BRAKES

Front brake	Disc
Rear brake	Disc

WHEELS AND TIRES

Wheel Size Front	2.15×17
Wheel Size Rear	3.5×17
Tyre Size Front	90/80-17
Tyre Size Rear	4.6-17
Tire Type (With/Without Tube)	With tube

ELECTRICAL/CONTROL SYSTEM

Battery	MF-12V7AH
Head Lamp	12V/8W/1.5W
Head Lamp Type (Normal/LED)	LED
Tail/Stop Lamp	12V/2W
Tail Lamp Type (Normal/LED)	LED
Turn Signal lamp	12V/0.5W
Turn Signal lamp Type (Normal/LED)	LED
Ignition system	CDI
Speedometer	Digital

DIMENSIONS

Length (mm)	2005
Width (mm)	770
Height (mm)	1100
Wheelbase (mm)	1370
Ground clearance (mm)	145
Fuel tank capacity (Litres)	15
Kerb Weight (kg)	120
Loadability 1×40 HQ	87

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Type (CG – CB)	CG
Balanced or Unbalanced	Unbalanced
Displacement/Capacity	150 CC
Maximum Power	8.2kw/8000r/min
Maximum Torque	9.8Nm/6000r/min
Bore x stroke	62×49.52
Compression Ratio	9.1:1
Starting	Electric / Kick Start
Top Speed	90 kmph
Mileage	2.3Litres per100kms
Carburetor	PZ27

TRANSMISSION & CHASSIS

Clutch	Wet multi-disc
Gear Box	5 Speed
Front Sprocket	15
Rear Sprocket	42
Chain Size	428H
Number of Chain Links	116

SUSPENSION

Front	Telescopic
Rear	Spring Coil Type

BRAKES

Front Brake	Disc
Rear Brake	Drum

WHEELS AND TIRES

Wheel Size Front	1.4×21
Wheel Size Rear	2.15×18
Tyre Size Front	2.75-21
Tyre Size Rear	4.1-18
Tyre Type	With Tube

ELECTRICAL/CONTROL SYSTEM

Battery	MF-12V7AH
Head Lamp	12V/14W
Head Lamp Type	LED
Tail/Stop Lamp	12V/21W/5W
Tail Lamp Type	Normal
Turn Signal lamp	12V/10W
Turn Signal Lamp Type	Normal
Ignition System	A/C CDI
Speedometer	Mechanical

DIMENSIONS

Length (mm)	2150
Width (mm)	850
Height (mm)	1230
Wheelbase (mm)	1350
Ground Clearance (mm)	280
Fuel Tank Capacity {Litres)	8
Kerb Weight (kg)	110

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Engine Type	CB
Balanced or Unbalanced	Unbalanced
Displacement/Capacity	200 CC
Maximum Power	10.2kw/7500r/min
Maximum Torque	14N.m/6000r/min
Bore x stroke	63.5×62
Compression ratio	8.6:1
Starting	Electric / Kick Start
Top speed	100 kmph
Mileage	2.4L/100kms
Carburetor	PZ30

TRANSMISSION & CHASSIS

Clutch	Wet multi plate
Gearbox	5 Speed
Front Sprocket	17
Rear Sprocket	50
Chain Size	428H
No 0f Chain Links	132

SUSPENSION

Front	Telescopic
Rear	Monoshocker

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS AND TIRES

Wheel Size Front	1.4×21
Wheel Size Rear	2.15×18
Tyre Size Front	2.75-21
Tyre Size Rear	4.60-18
Tire Type (With/Without Tube)	With Tube

ELECTRICAL/CONTROL SYSTEM

Battery	MF-12V6.5AH
Head Lamp	12V/14W
Head Lamp Type	LED
Tail/Stop Lamp	12V/21W/5W
Tail Lamp Type (Normal/LED)	Normal
Turn Signal lamp	12V/2.5W
Turn signal lamp type (Normal/LED)	LED
Ignition system	A/C CDI
Speedometer	Digital

DIMENSIONS

Length (mm)	2210
Width (mm)	885
Height (mm)	1160
Wheelbase (mm)	1360
Ground clearance (mm)	265
Fuel tank capacity (Litres)	11.5
Kerb weight (kg)	150

ENGINE

Cooling	Air Cooled
No 0f Cylinders	1
Type	CG
Balanced or Unbalanced	Balanced
Displacement/Capacity	200 CC
Maximum Power	10.0kw/8000r/min
Maximum Torque	14N.m/6000r/min
Bore and stroke	63.5×62.2
Compression ratio	9.1:1
Starting	Electric / Kick Start
Top speed	90 kmph
Mileage	2.9Litres per 100km
Carburetor	PZ30

TRANSMISSION

Clutch	Wet multi-disc
Gearbox	5 Speed
Front Sprocket	17
Rear Sprocket	56
Chain Size	428H
Number of Chain Links	134

SUSPENSION

Front	Telescopic
Rear	Mono shocker

BRAKES

Front brake	Disc
Rear brake	Drum

WHEELS AND TIRES

Wheel Size Front	1.85×19
Wheel Size Rear	2.15×17
Tyre Size Front	90/90-19
Tyre Size Rear	110/90-17
Tire Type	With tube

ELECTRICAL/CONTROL SYSTEM

Battery	MF-12V6.5AH
Head Lamp	12V/14W
Head Lamp Type	LED
Tail/Stop Lamp	12V/21W/5W
Tail Lamp Type	Normal
Turn Signal Lamp	12V/10W
Turn Signal Lamp Type	Normal
Ignition system	A/C CDI
Speedometer	Mechanical

DIMENSIONS

Length	2070mm
Width	815mm
Height	1160mm
Wheelbase	1360mm
Ground clearance	257mm
Fuel tank capacity	10Litres
Kerb Weight	150kg

ENGINE

Cooling	Air Cooled
N0. 0f Cylinders	1
Type	CG
Balanced or Unbalanced	Balanced
Displacement/Capacity	250 CC
Maximum Power	11kw/8000r/min
Maximum Torque	16.5Nm/7000r/min
Bore x stroke	65.5×66.6
Compression ratio	8.8:1
Starting	Electric / Kick start
Top speed	105 kmph
Mileage(litres/100kms)	2.3L/100km
Carburetor	PZ30

TRANSMISSION & CHASSIS

Clutch	Wet multi plate
Gearbox	5 Speed
Front Sprocket	16
Rear Sprocket	50
Chain Size	428H
Number 0f Chain Links	130

SUSPENSION

Front	Telescopic
Rear	Monoshocker

BRAKES

Front brake	Disc
Rear brake	Disc

WHEELS & TYRES

Wheel Size Front	1.85×19
Wheel Size Rear	2.15×17
Tyre Size Front	90/90-19
Tyre Size Rear	110/90-17
Tire Type (With/Without Tube)	With Tube

ELECTRICAL/CONTROL

Battery	MF-12V6.5AH
Head Lamp	12V/14W
Head Lamp Type	LED
Tail/Stop Lamp	12V/21W/5W
Tail Lamp Type	Normal
Turn Signal lamp	12V/2.5W
Turn signal lamp type (Normal/LED)	LED
Ignition system	A/C CDI
Speedometer	Digital

DIMENSION

Length (mm)	2070
Width (mm)	850
Height (mm)	1160
Wheelbase (mm)	1370
Ground clearance (mm)	180
Fuel tank capacity (Litres)	12
Kerb weight (kg)	150

SPECIFICATIONS

ENGINE (CC)

MAX. POWER

MAX. TORQUE

TOP SPEED

Tell the exploits

OUR COLOUR RANGES

Black Colour

White Colour

Yellow Colour

STYLE

COMFORT & CONVENIENCE

SAFETY

New Standards

Great design

Optimal choice

RINO 150

SPECIFICATIONS

ENGINE (CC)

MAX. POWER

MAX. TORQUE

TOP SPEED

Tell the exploits

OUR COLOUR RANGES

Black Colour

White Colour

Yellow Colour

STYLE

COMFORT & CONVENIENCE

SAFETY

New Standards

Great design

Optimal choice

CONTACT INFORMATION
